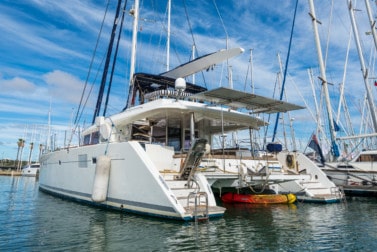

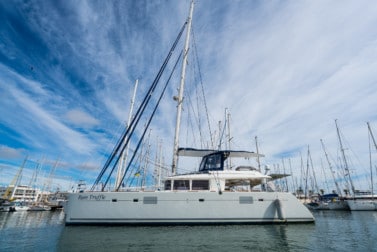

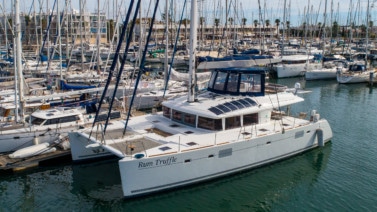

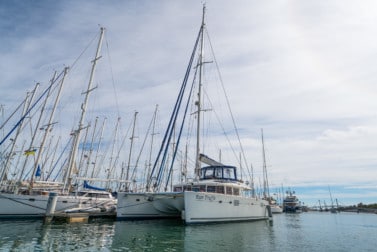

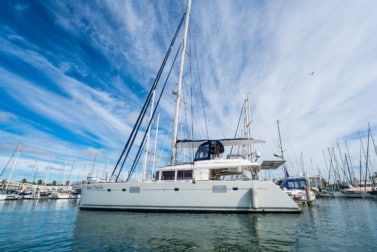

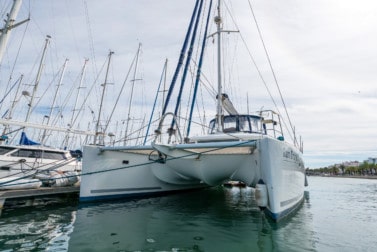

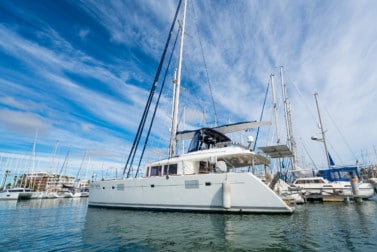

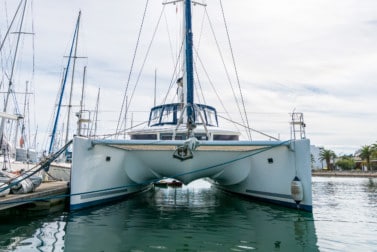

Lagoon 560 [5 cabin version]

Manufacturer: Lagoon Catamarans
Model: Lagoon 560 [5 cabin version]
Year: 2011
Length (feet): 56
VAT Paid: Yes - EU VAT Paid
Location: Portugal

Full Specs

Lagoon 560 [5 cabin version]

5 cabin owner version + 2 crew

Available now and priced to sell. Fantastic opportunity. Fully loaded with equipment and toys, ready to go from Portugal – an ideal location for anyone wanting to sail straight in to the Med or even down to The Canaries ready for the hop across to the other side!

Year – 2011
LOA – 17.07m
Beam – 9.44m
Draft – 1.50m
Light displacement – 28,788 kg
Fuel tank 2 x 650 ltrs
Water tank 2 x 500 ltrs
Engine 2 x Yanmar 4JH4-HTE 110hp
Propellers 3 blade folding propellers
Drive Shaft drive with shaft brakes
Flag – British
Location – Lagos, Portugal

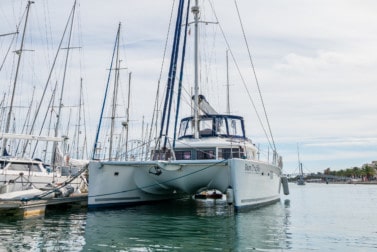

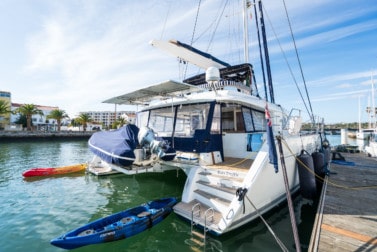

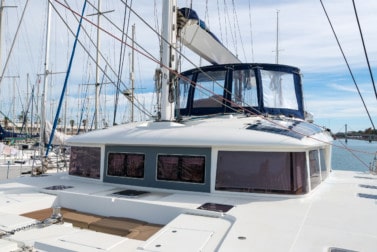

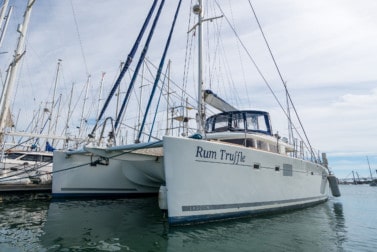

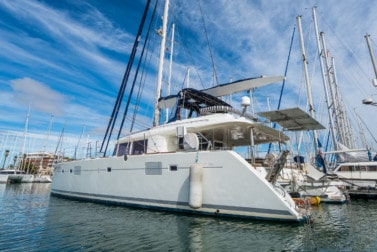

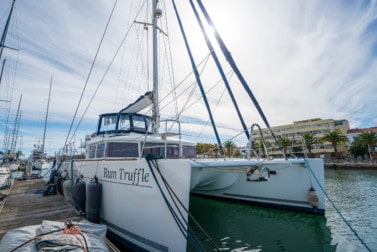

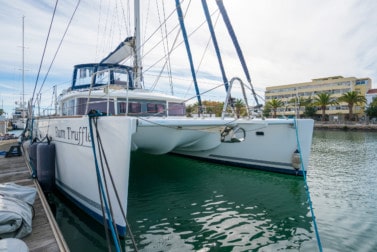

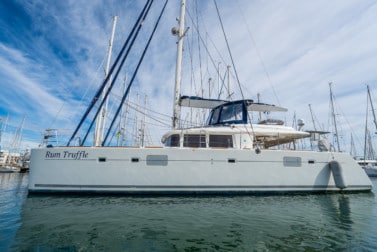

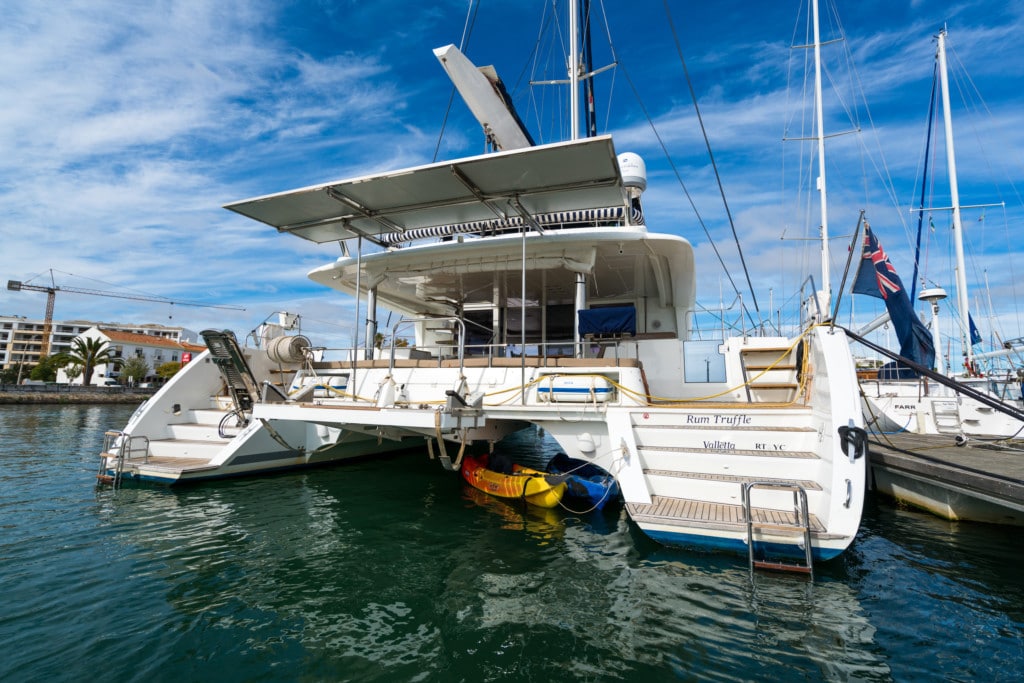

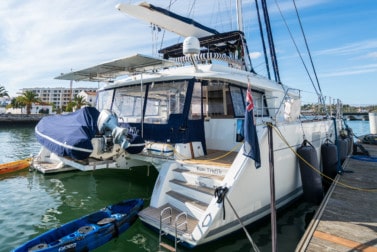

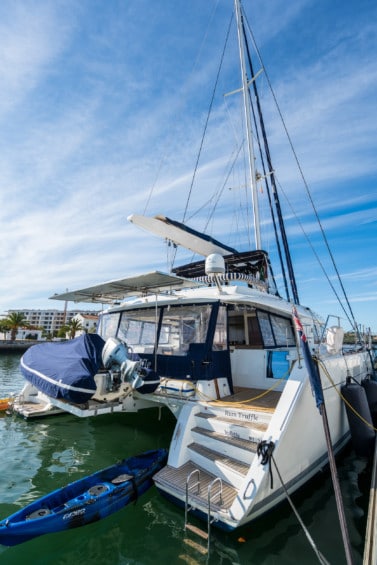

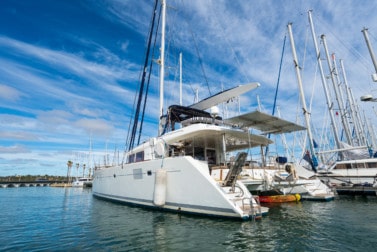

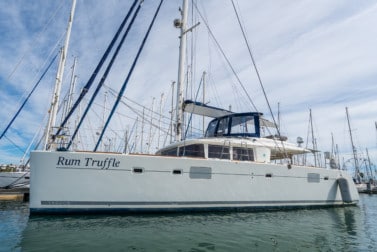

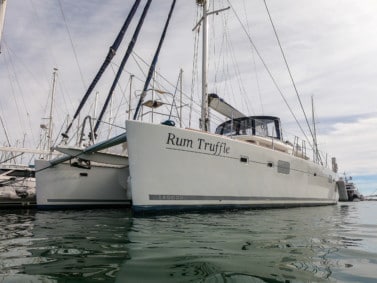

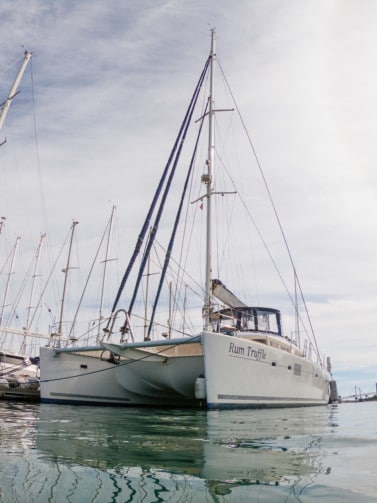

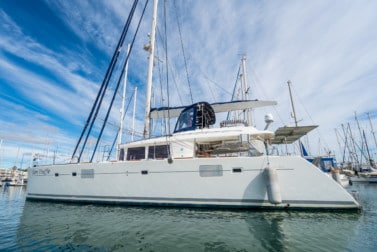

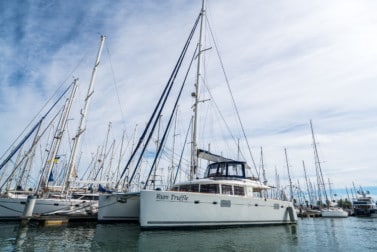

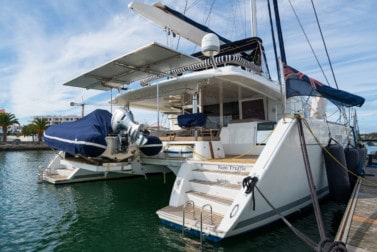

‘Rum Truffle’, an impressive Lagoon 560 in 5 cabin version and never chartered, this exceptional layout offers fantastic flexibility for friends, family and crew to all enjoy life onbord when under passage or in port. Rum Truffle boasts fully upgraded packages in all areas, making this yacht a true pleasure to sail and a wonderfully comfortable home-from-home when in port or at anchor.

EU VAT paid and priced to sell. Enquire now to avoid disappointment.

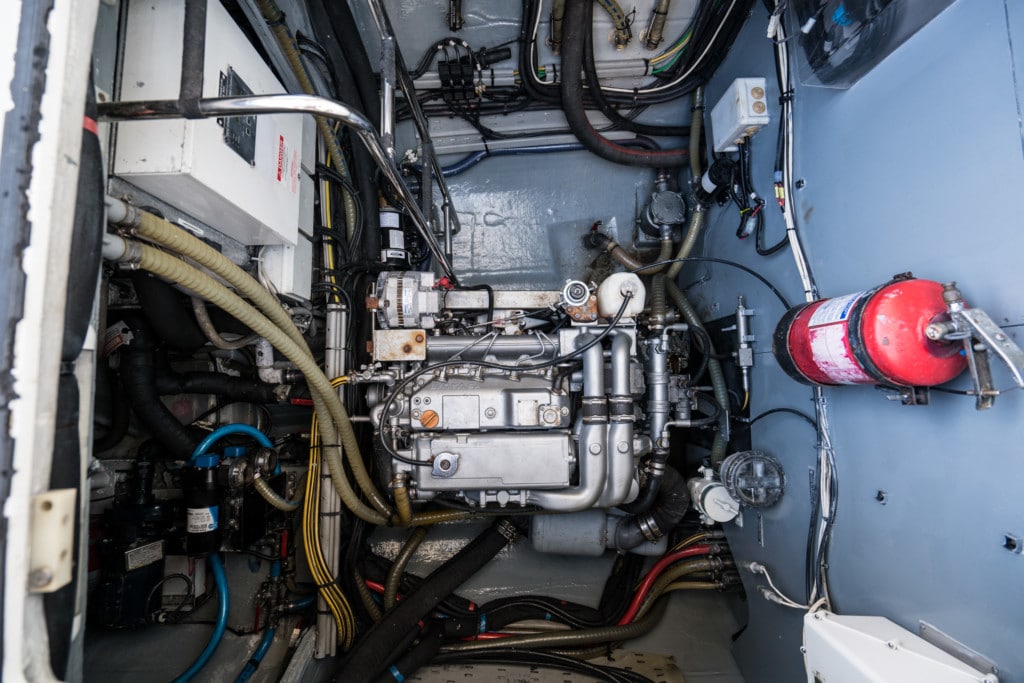

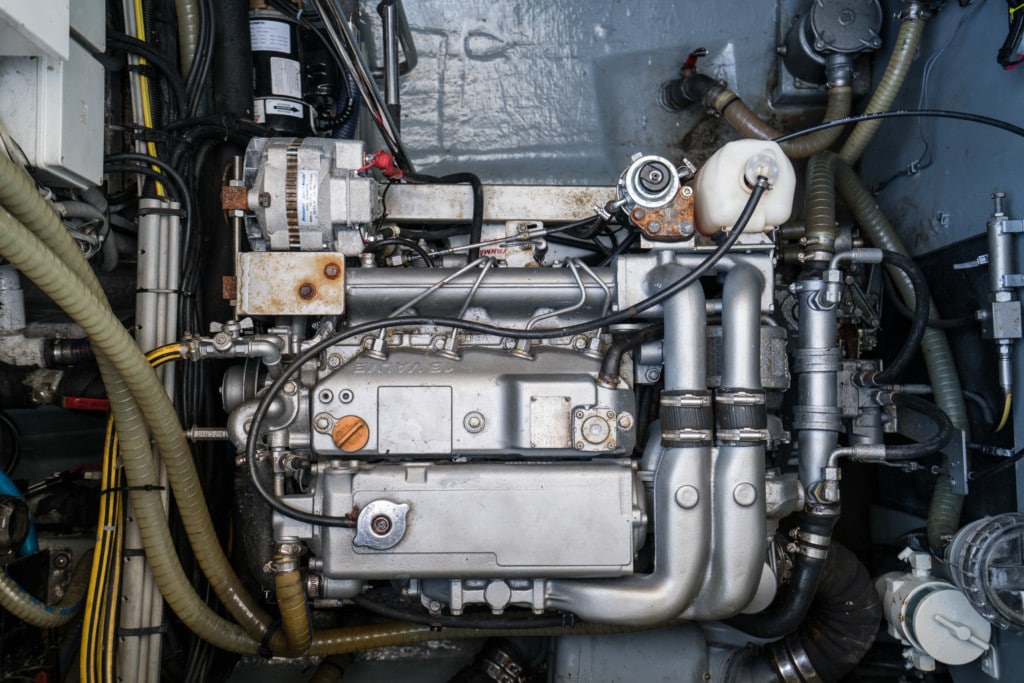

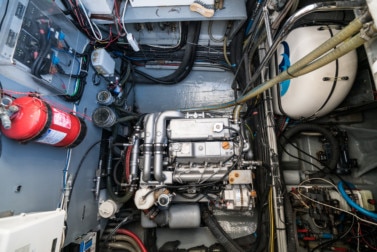

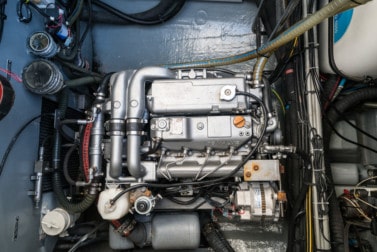

2 x Yanmar 4JH4-HTE 110hp
Engines fitted with 2 x 24V 110amp alternators, 2 x 65amp 12v alternators
Electrically activated shaft brakes.
Port engine hrs 3720
STBD engine hrs 3730


Main Sail square top Quantum
Inner Foresail Quantum
Genoa Quantum
Code O Quantum on furler
Auxiliary furling system

Deck Gear

Canoe boom in composite
All winches electric

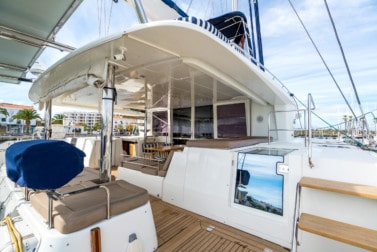

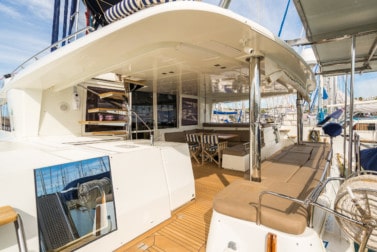

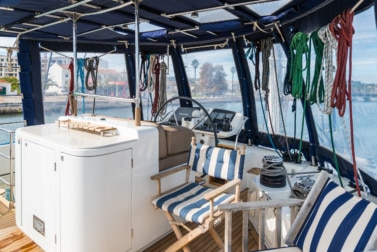

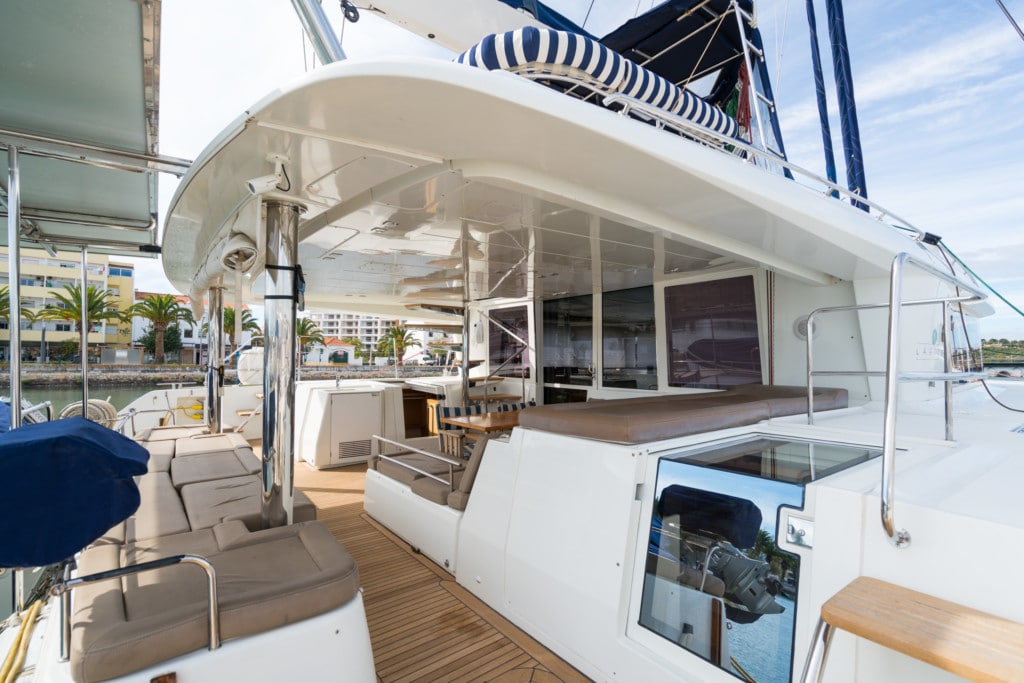

Teak cockpit and flybridge

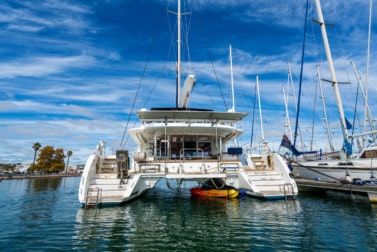

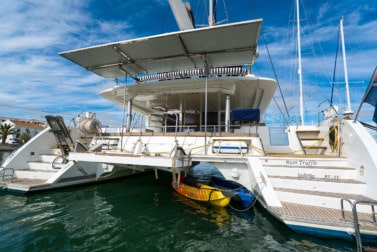

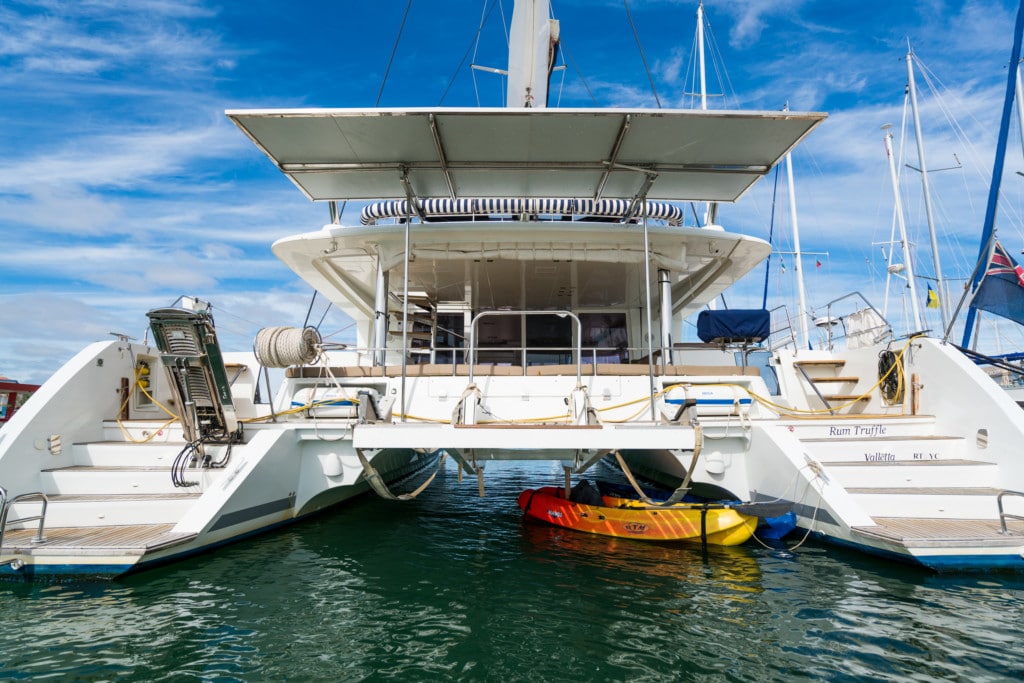

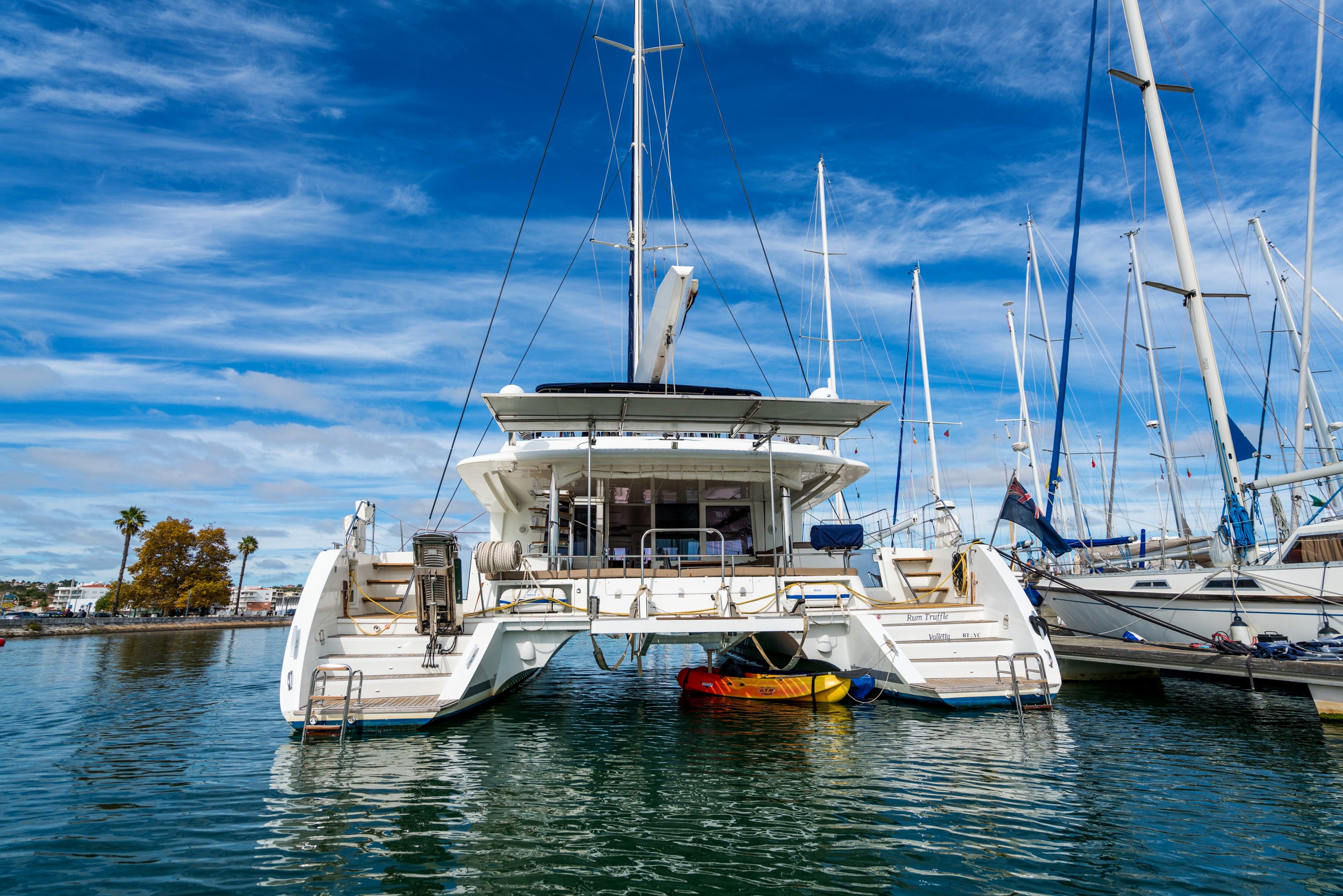

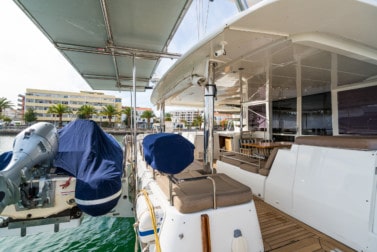

Hydraulic tender lift
Bezenzoni hydraulic Passerelle

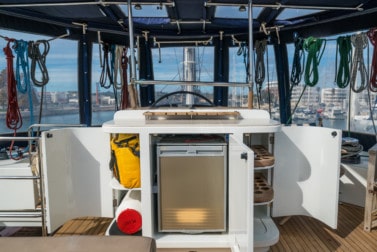

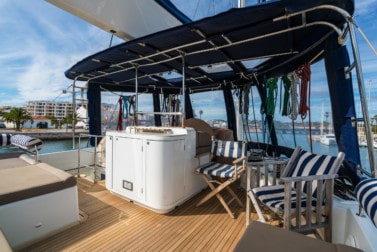

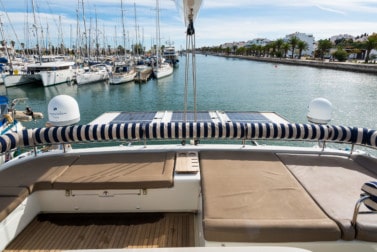

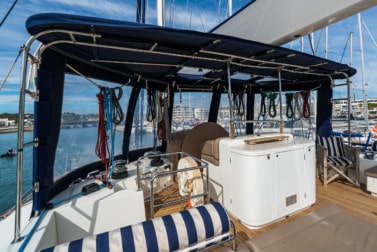

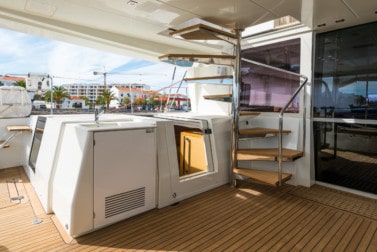

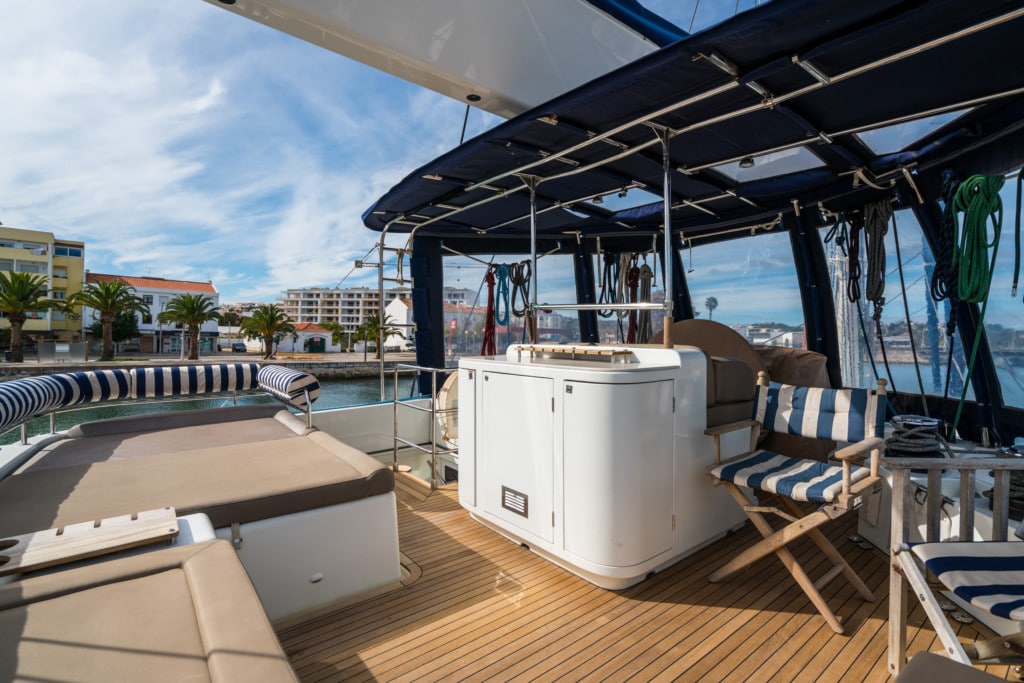

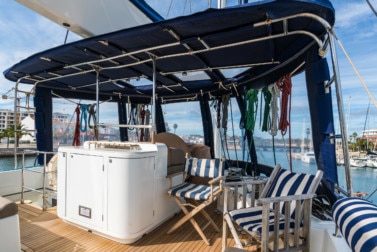

Flybridge island with refrigerator and storage built in.
Electric-tilting solar panel gantry

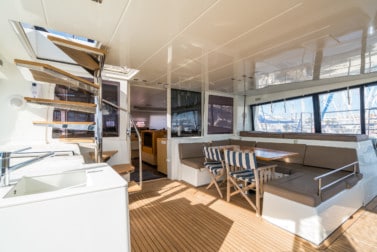

Cockpit sink and ice maker

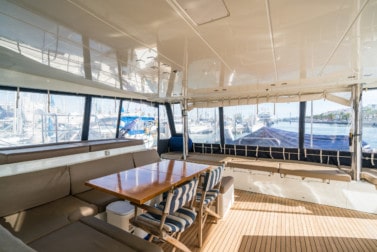

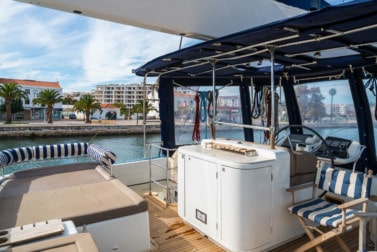

Half Bimini on fly bridge

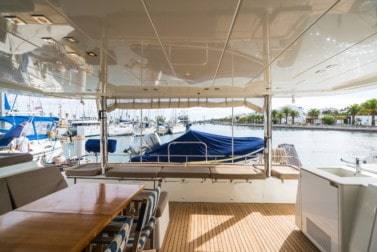

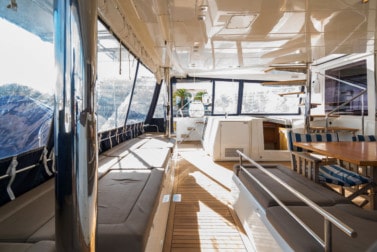

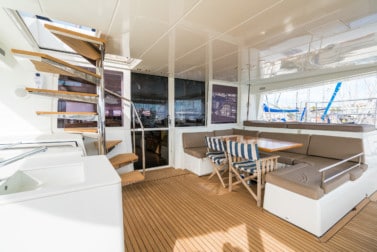

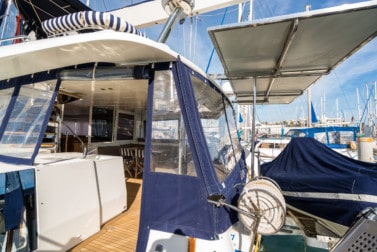

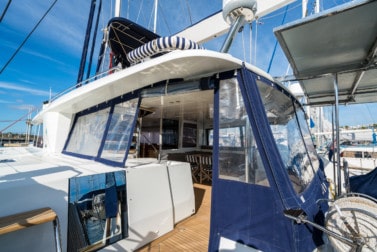

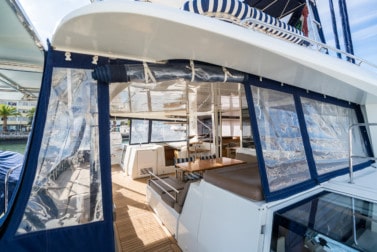

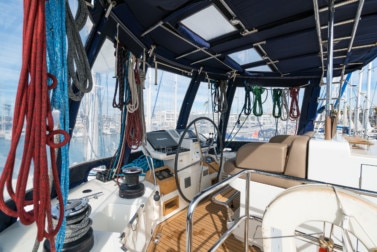

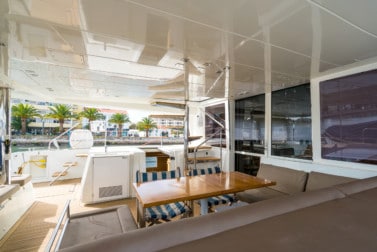

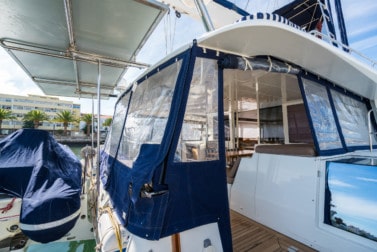

Cockpit enclosure, canvas and mesh.

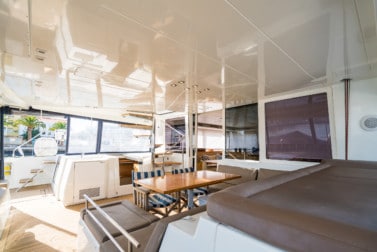

Cockpit and flybridge cushions in taupe.

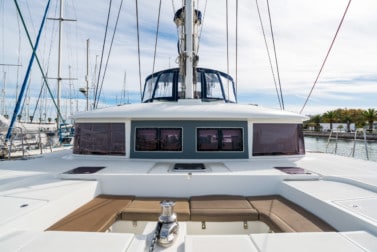

Forward seating cushions in taupe

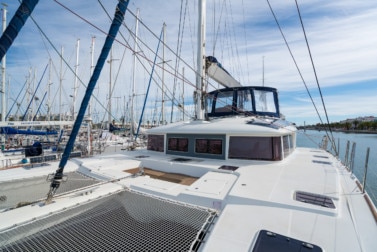

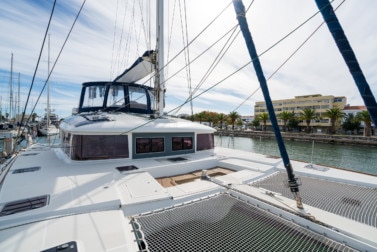

Trampolines 2020
4 x underwater lights
Magma mounted gas BBQ

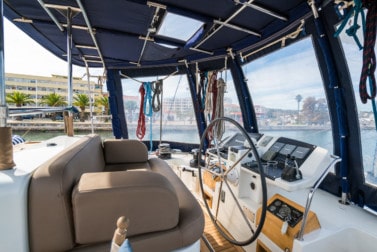

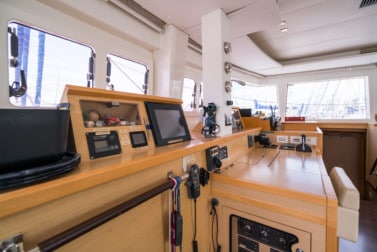

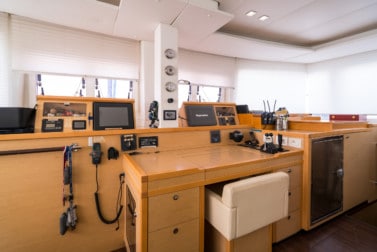

Raymarine E 120 at helm and nav station
Raymarine AIS 500 transceiver with antenna coupling.
Rudder, joystick control at helm stations
Raymarine CAM 100 cameras under flybridge x 2
Raymarine 18″ 4kw 48NM Raydome with SS protection.
Raymarine smart control autopilot remote control
2 x VHF Icom hand held.
KVH V3 IP track vision phone antenna
KVH M5 track vision antenna
Glomex series 2 satellite antenna.


House batteries Exide marine 210amp gel
2 banks of 4 840amps 1680 amps total. late 2019.
Onan 17.5KVA generator with sound shield. 3243 hrs
Paguro 5 KVA genset with sound shield
2 x Victron phoenix inverters 24V 5000W
1 x DCLI 24V 3000W inverter (dedicated to fridge freezer and 220 outlets on STB)
2 x Victron Skylla. I Battery chargers 24V 100amps
1 x Victron Centaur 12v 30 amp charger
Victron energy blue solar
3 x MPPT 150V 85amp charge controller
2 x MPPT 100V 30 amps charge controller
14 x Sunpower flexible 150W on saloon roof.
6 x Sunpower flexible on electrically controlled gantry.
Watermaker Sea Recovery Aquamatic 280Lrs. 220v.
Dometic, reverse cycle water-cooled 72,000btu A,C to all cabins with individual

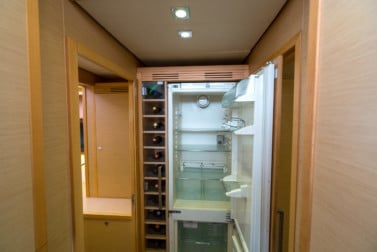

1 x Bottle fridge, galley
1 x Fridge galley
1 x Fridge freezer STD hull
1 x Ice maker cockpit
1 x Fridge flybridge island.


Optional built in cupboards and storage.

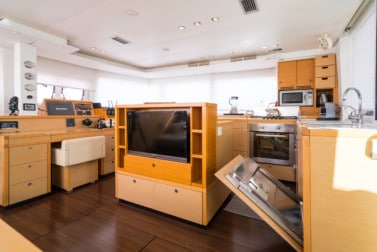

Optional island with storage and TV on reverse side.

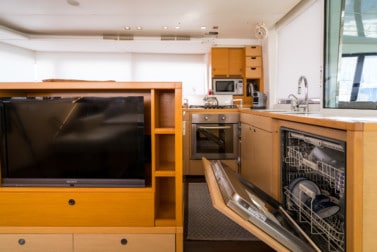

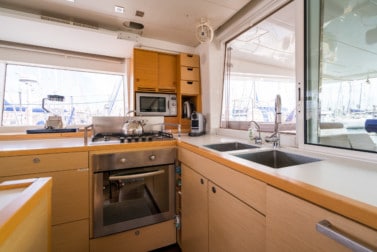

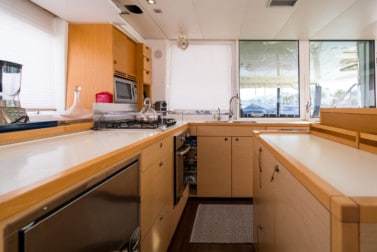

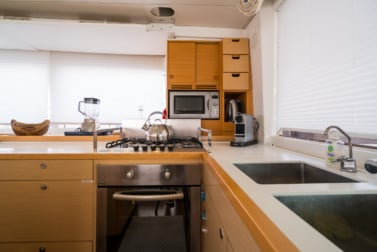

5 ring gas hob, Oven and grill
Microwave oven and grill

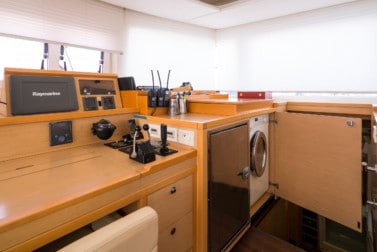

Washing machine
Dish washer
20 bottle wine rack.
Toaster, kettle, coffee machine, food processor etc.

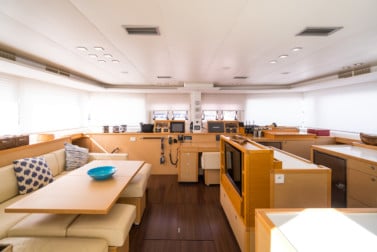

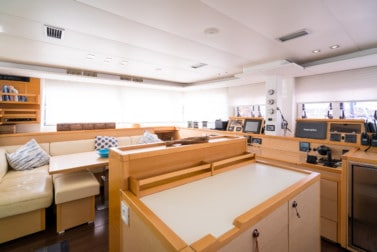

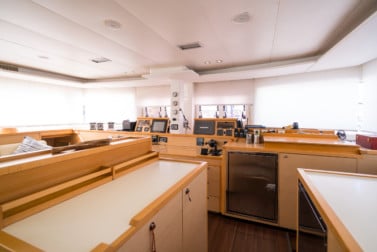

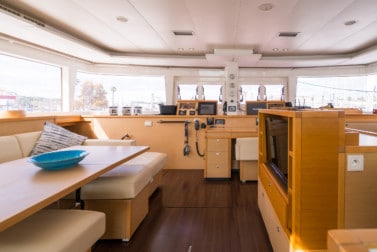

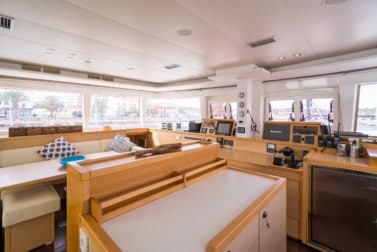

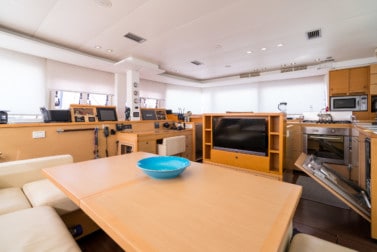

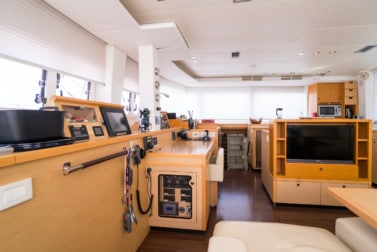

Interior layout

Dark wenge floors
Woodwork light Alpi Oak

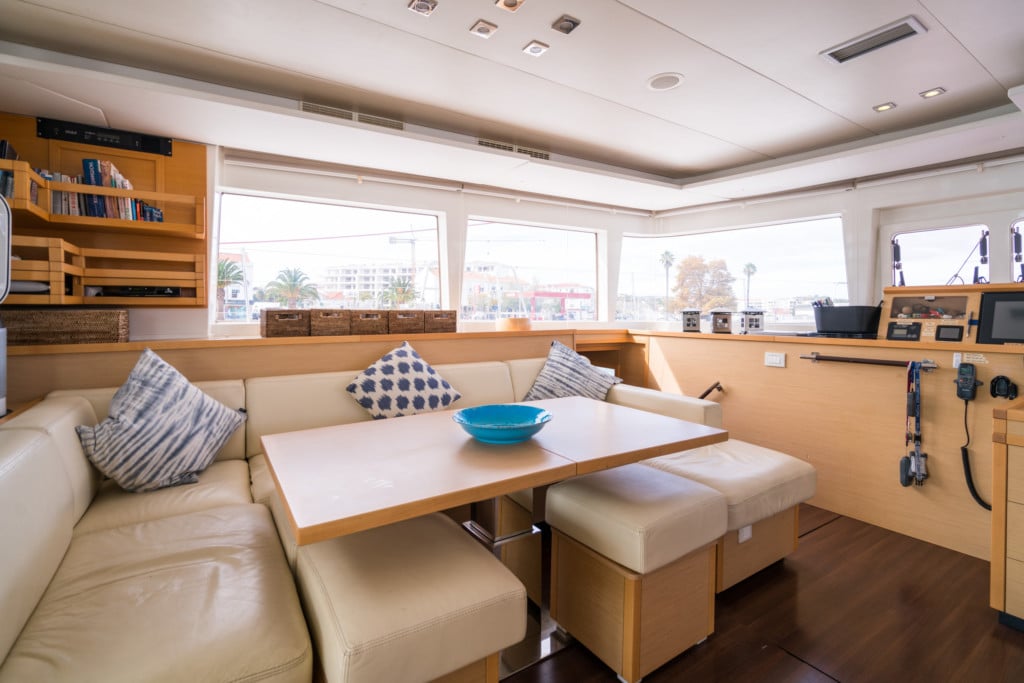

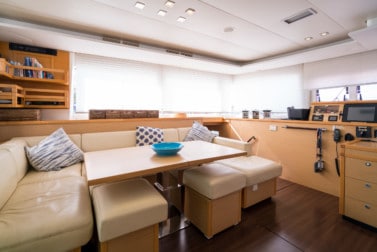

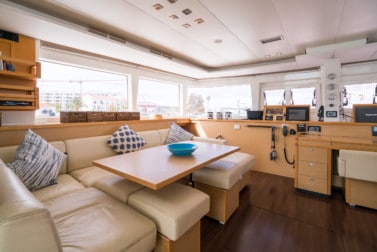

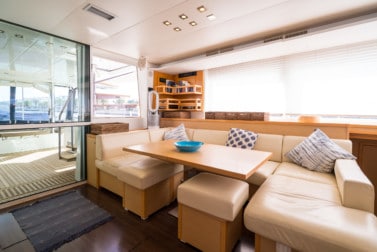

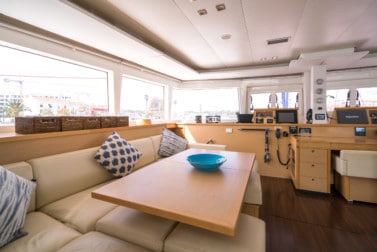

Cream leather Devon ref 0804 in saloon and additional stools, 5 total.

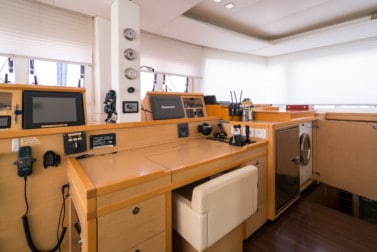

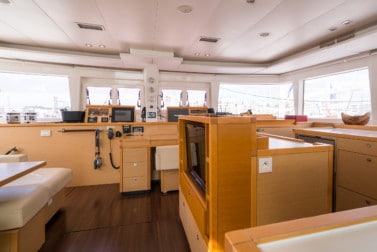

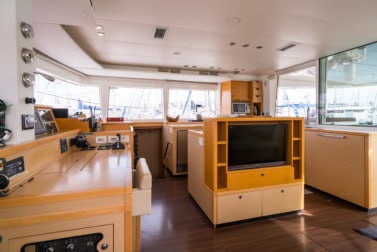

Optional wood in saloon. Built in book case, centre island TV stand and storage. nav
table storage units, wine rack.

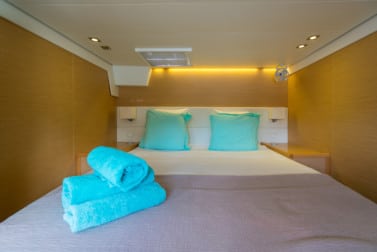

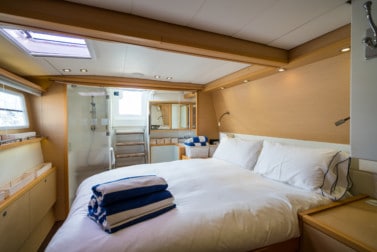

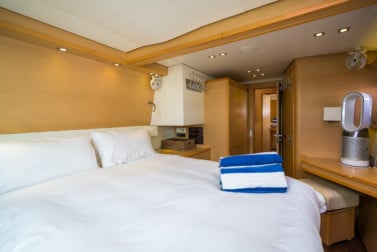

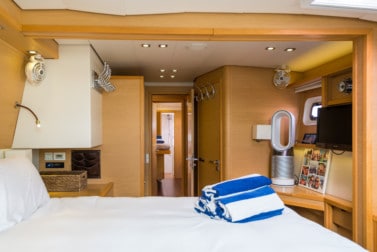

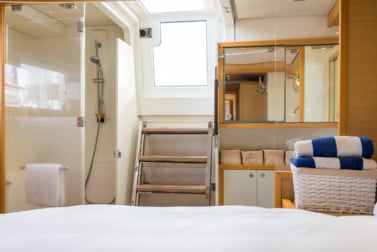

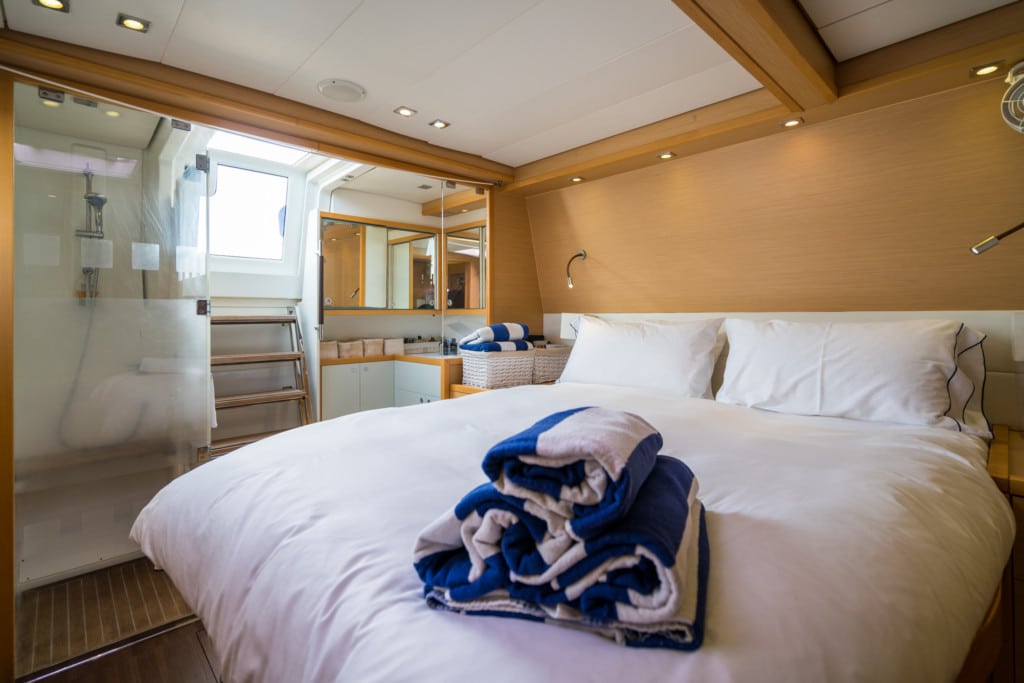

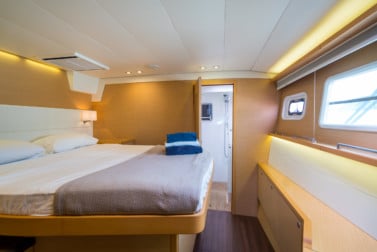

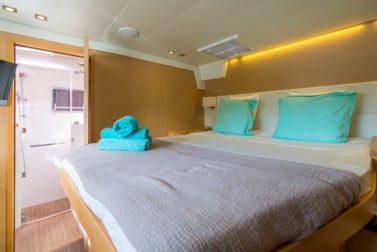

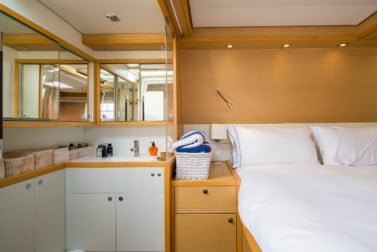

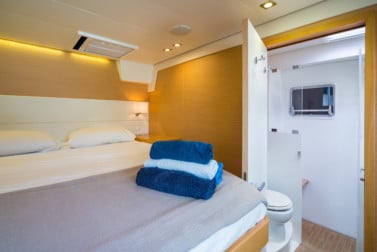

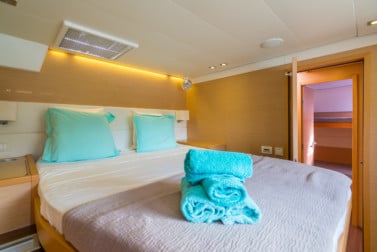

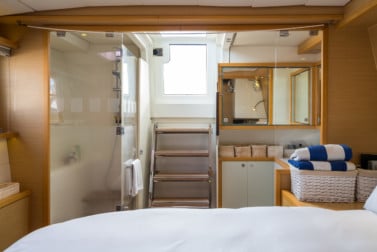

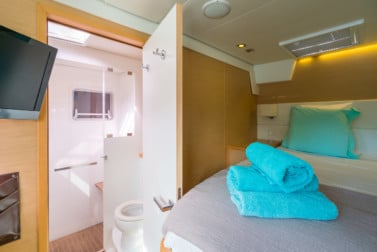

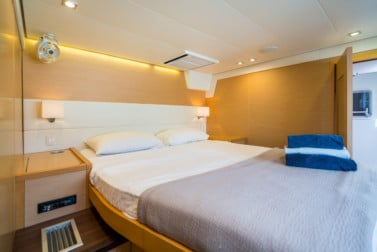

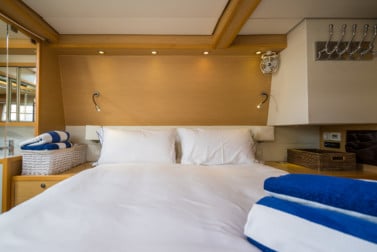

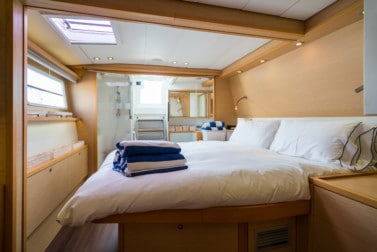

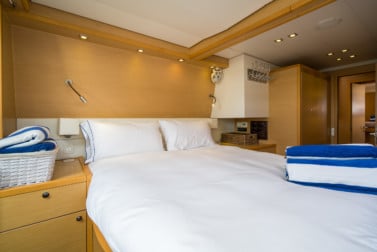

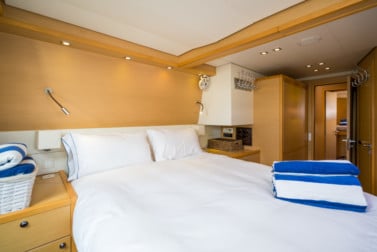

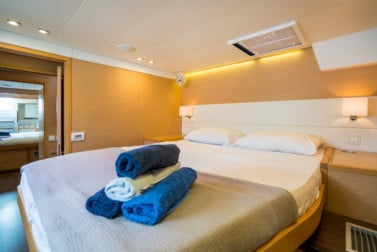

1 Owners cabin

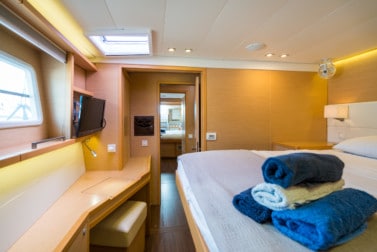

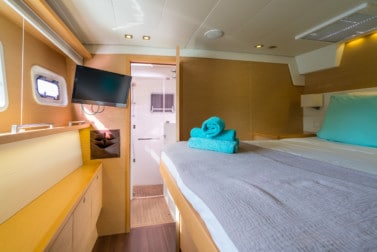

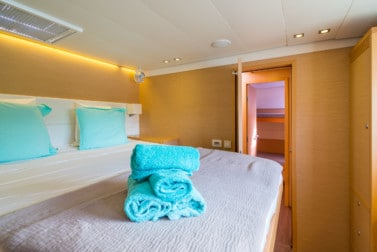

3 Double guest cabins

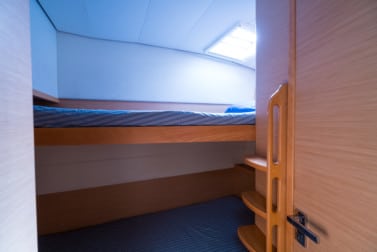

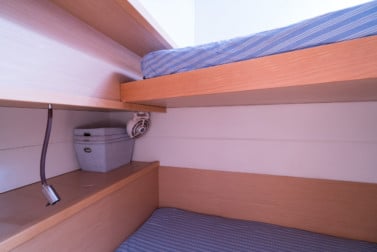

1 Bunk beds
2 x Crew cabins in bows, with wc and running water.
Ocean air pleated blinds, saloon and all cabins.
Radio, DVD, CD, MP3 player + 2 speakers with a 22″ sony Tv in each double cabin.
Sony 32″ Tv in saloon fully linked.
Bose lifestyle 38 HiFi/DVD home cinema in saloon, with speakers in cockpit and

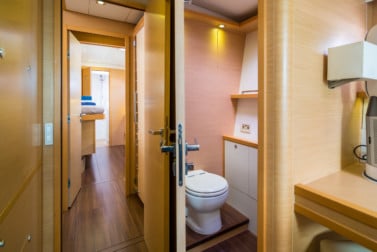

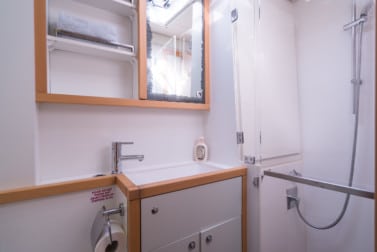

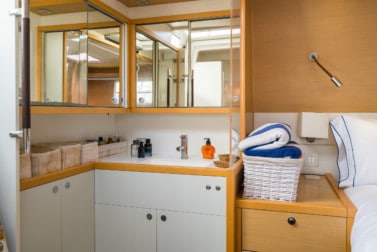

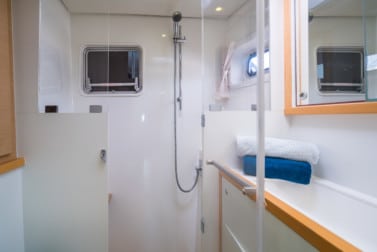

Tecma electric fresh water toilets fitted in all cabins.
Lighting throughout.
Ceiling LEDs,
Mood lights
Night lights
Reading lights.

Ground Tackle

Lewmar 24v 2000w windlass with gypsy.
Remote control forward and helm.
Main anchor Rocna SS 55kg with 100M 10mm chain
Spare anchor Ultra SS 45kg
Bridle with SS fittings.
Spare anchor swivels and chain.
100M plus anchor line24mm -30mm

Safety Equipment

2 x Life rafts, Ibiza 8 man canister.
3 x Life buoys
1 x Jon bouy
50M Flotation line on roller.
5 x Spinlock deck vests.
2 x Deck vests
4 x Harnesses
Medical kit MSOS-281
Offshore flare pack.
Bosuns chair
2 x Boarding ladder SS
100M braid on braid tow line with hard eyes.28mm


AB Aluminium tender 4.3M with Honda 50
1 man kayak
2 man kayak
1 set of dive gear


Deck wash down pump in forward locker.
